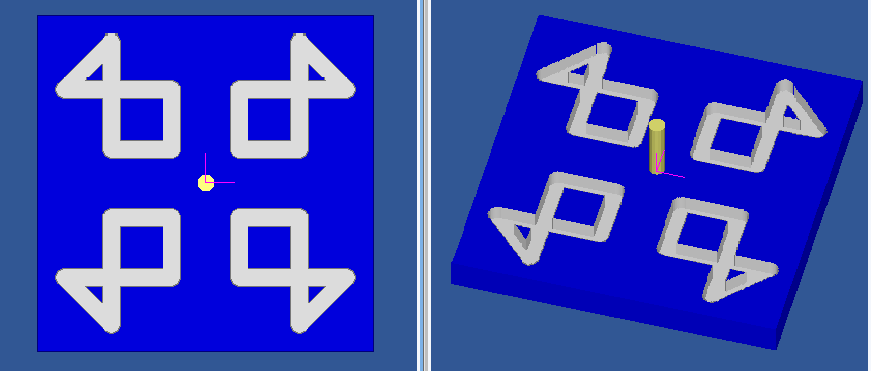

mirror cnc program in cutviewer mill


(TOOL/MILL,5,0,20,0)
(STOCK/BLOCK,100,100,10,50,50,10)
(COLOR,255,255,255)
g00 x0 y0
z0
m98 p111
m21
m98 p111
m23
m22
m98 p111
m23
m21
m22
m98 p111
m23
m30

o111
G00 X10. Y10.
G01 Z-5. F0.1
G91
G01 X18. Y0.
G01 X0. Y32.
G01 X14.Y-14.
G01 X-32. Y0.
G01 X0.Y-18.
G00 Z7.
G90
G00 X0. Y0.
M99





(TOOL/MILL,5,0,20,0)
(STOCK/BLOCK,100,100,10,50,50,10)
(COLOR,255,255,255)
g00 x0 y0
z0
m98 p111
m21
m98 p111
m23
m22
m98 p111
m23
m21
m22
m98 p111
m23
m30

o111
g00 x20 y20
g01 z-.5 f50
g91
g01 x20
g01 x-20 y20
g01 y-20
g90
g01 z5
g00 x0 y0
m99
