Hydraulics Part 1 - Direction Control Valves

Direction control valves in Hydraulic systems are classified as follows:
1.Type of internal element for actuation : Poppet (piston or ball) , Rotary spool , sliding spool
2.Methods of Actuation : Manual , mechanical , Pneumatic , Hydraulic , electrical , Electronic or a
   combination
3.Size : Nominal size , volume handled
4.Type of connection  :Flanged , Pipe thread

Hydraulic notation




Check Valves :
These are the simplest type of hydraulic valves - allowing free flow in one direction and blocking the other side.There is a light spring holding the poppet valve in position , only to be lifted up when flow occurs overcoming the spring pressure in that direction.These are further classified based on direction as
In line check valve (flow direction is in the same axis)
-Right angle check valve  flow direction is  in right angles to the original flow.

Restricted flow check valve - has an orifice in the valve plate .These valves are used to control the rate of pressure rise or fall in a system.

Pilot operated check valves - need a pilot pressure to actuate the check valve




A typical application of pilot operated check valves - is accumulator unit powered by pump- as shown below.

Symbols







Methods of actuation:
Mechanical Actuation
 Pneumatic/ Hydraulic

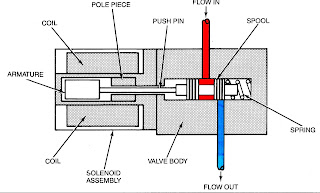

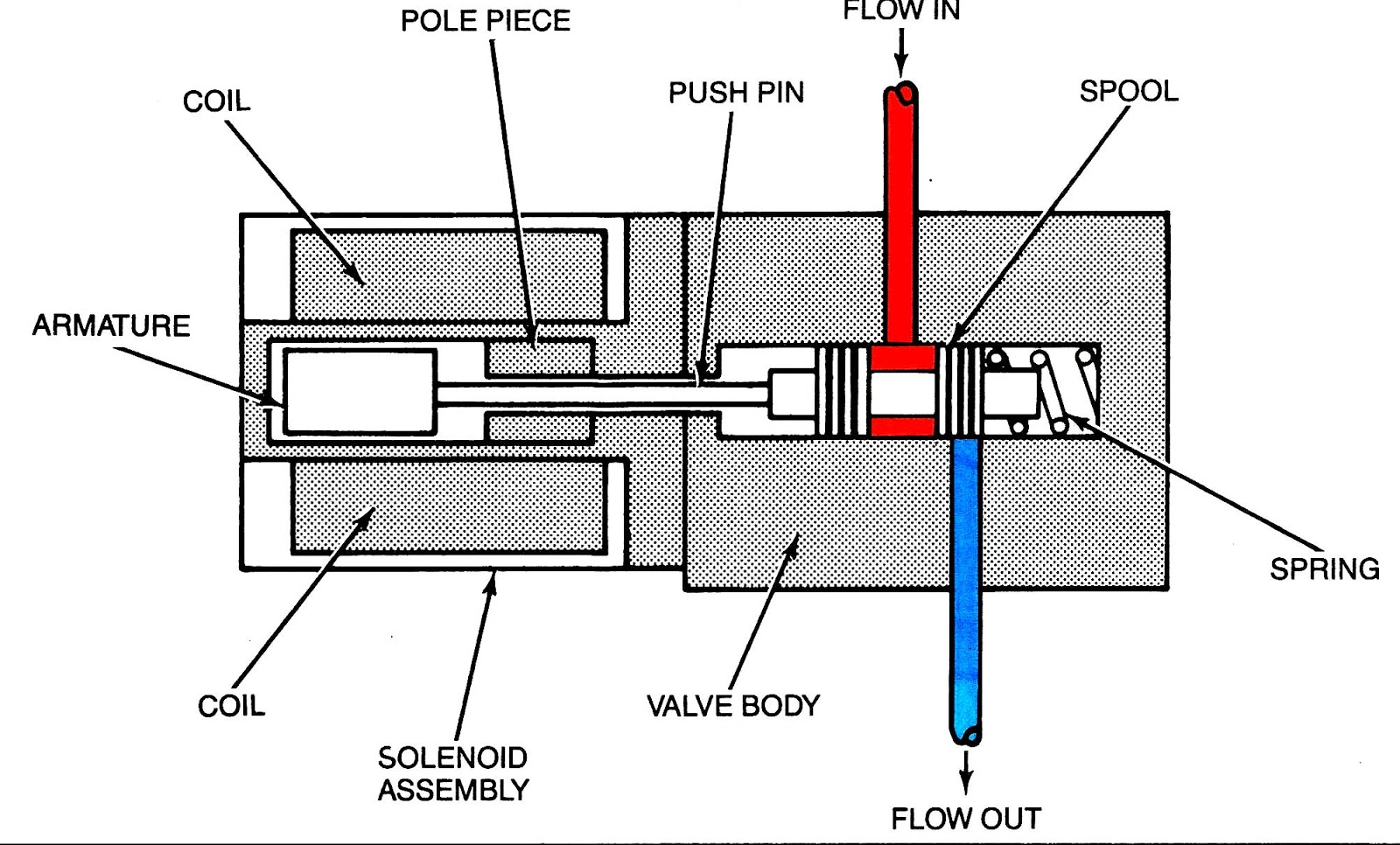

 Electrical / Electronic actuation : By solenoids AC/DC , controlled by electronic logic.




The number of ports to and from determines a Two way , Three way or four way valve
Valves with machined spool (2 Way , 3 Way , 4 way valves )
Two way valves permit the flow from one pressure port to outlet port by change of spool




Three way valve have special spool configurations , permitting flow from pressure to two other ports at the same time.
Four way valves are present in five  variations


1. Spring centered :
Two position spring centered has one actuator with spring to return
Three position spring centered has two actuators- with spring to return.


 2.Two position spring offset : Spring holds the spool at one position and actuator changes condition opposite to spring condition


3.Two position Actuate to center  : Valve is normally under one extreme condition held by spring - only to return to center position when actuated


 4.Two position Detented : Valve spool is held in position by detent mechanism in one extreme position , to be changed upon actuation.



5.Spool center spool valves :
Open center - interconnects all ports - to remove pressure from end user to flow back into the tank
Closed center:- Closes all ports - pressure retained.
Tandem center: Blocks flow  from end user ports - but connects pressure port to tank at low pressure- used in series circuits.
Float Center: - Pressure maintained at pressure port- but removed from other ports - used commonly with pilot operated check valve circuits.

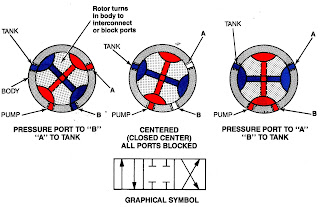

6.Rotary valve


Two stage valves
These are used to control fluids at high pressures , where the main valve is actuated by a pilot mechanism . The main purpose is to reduce pressure surges in the system and smooth operation.
They can be incorporated with stroke limiting of main spool  or a throttle valve flow between pilot to main spool for smother transition , as shown below:


A pilot operated choke valve controlling spool is as below:

A symbolic  representation of various two stage valves is as below:
